Products and services

Locomotives

TSS Cargo owns diesel locomotives of the serie 711, 721, 730, 740, 742, 753 and electric locomotives of the serie 180.The locomotives are used for freight transport, shunting a transport of special vehicles and ordinary wagons.



Rail freight wagons

TSS Cargo owns special wagons of the serie Chopper, Ua, Facc, Smmp, Rmms, Falns and some others used for service of track machines. We carry out technological transport with special wagons (hopper wagons for transport of loose materials).

Overview of basic types of vehicles

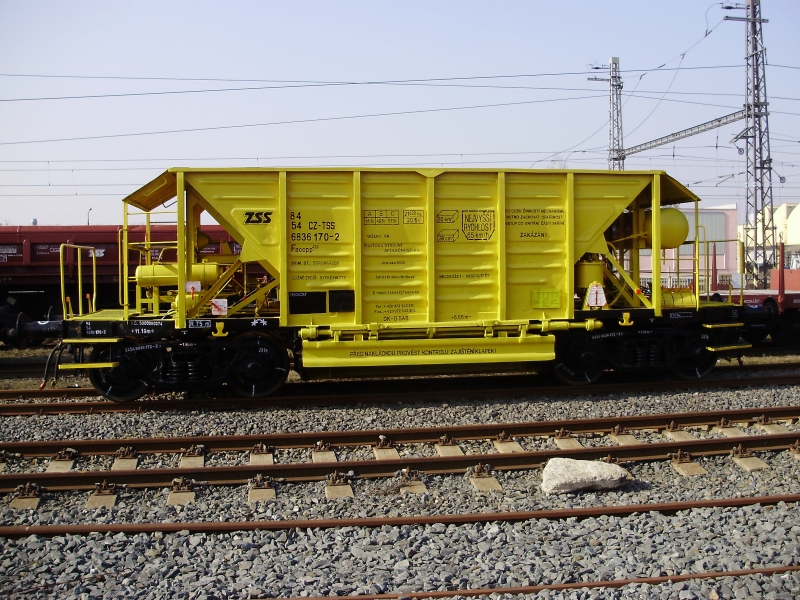

Faccpp, type 9-429.0

Faccpp, type 9-429.0
Description:
Four-axle hopper wagon for transport of bulk commodities (especially broken stone).The wagon is equipped with mechanism for controlled discharge of load and for scuff during slow drive. The hopper placed on the spin of wagon frame provides controlled discharge of load by flaps:
- external flaps provide proportioning behind a head of rail into the outer space of superstructure
- internal flaps provide proportioning into the space between rail.
Flaps are pneumatically controlled by cylinders and leverage. Flaps are secured in the transport position by arrestment. A frame of dispenser is situated under a hopper, by lifting and lowering of which spreading of load is regulated during a slow drive. The frame is pneumatically controlled by cylinders. In transport position the frame is secured by protective suspensions. The wagon unloading is controlled from wagon platform using pneumatic valves.
Technical data:
Railway gauge1 435 mm
Maximum speed65 km/h
Work speed3 up 5 km/h
Tare weight21,6 t
Payload58 t
Total weight80 t
Axle load20 t
Wagon width3 114 mm
Wagon height3 196 mm
Loading capacity38 m3
Length over buffers11 190 mm
Bogies2XTa
Pneumatic brakeDAKO DK G

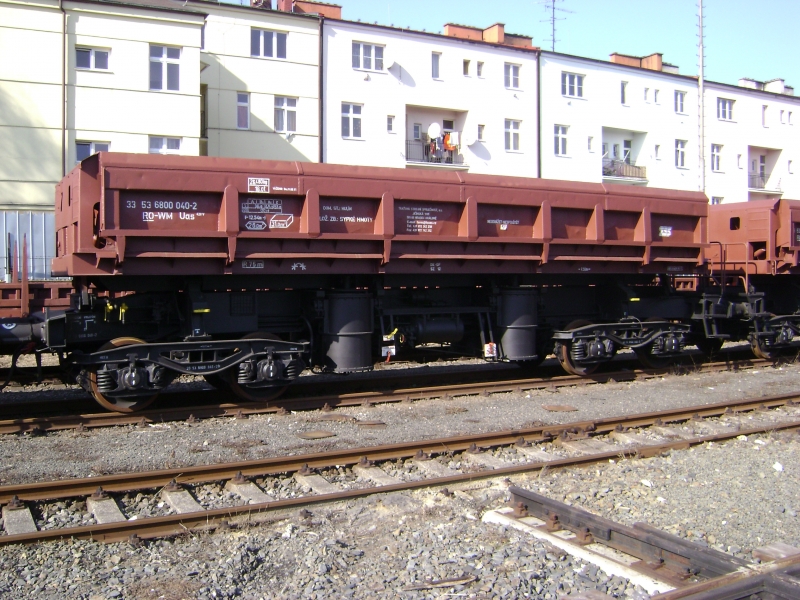

Uas, type 428V

Uas, type 428V
Description:
Four-axle dumping wagon for transport of bulk materials such as gravel, broken stone, sand, soil etc. Unloading, to any side of track, is effected by tilting the wagon body through an angle of 45° using pneumatic cylinders. Maximum wagon height in tilting position is 4 250 mm over rail level.
Technical data:
Railway gauge1 435 mm
Maximum speed100 km/h
Tare weight27 t
Axle load20 t
Wagon width3 080 mm
Wagon height3 205 mm
Payload53 t
Total weight80 t
Loading capacity31 m3
Loading area26 m2
Length over buffers12 540 mm
Wheel diameter920 mm
BogiesY 25 Rs
Pneumatic brakeDAKO DK-GP

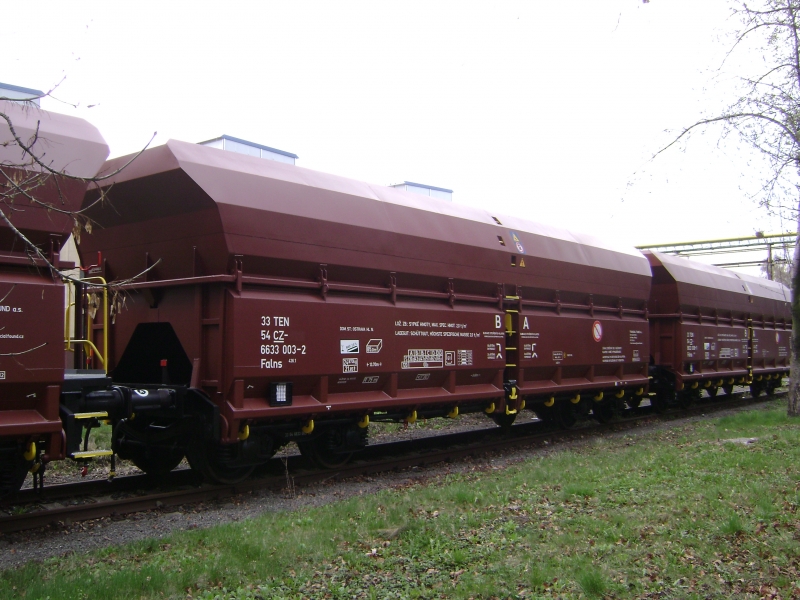

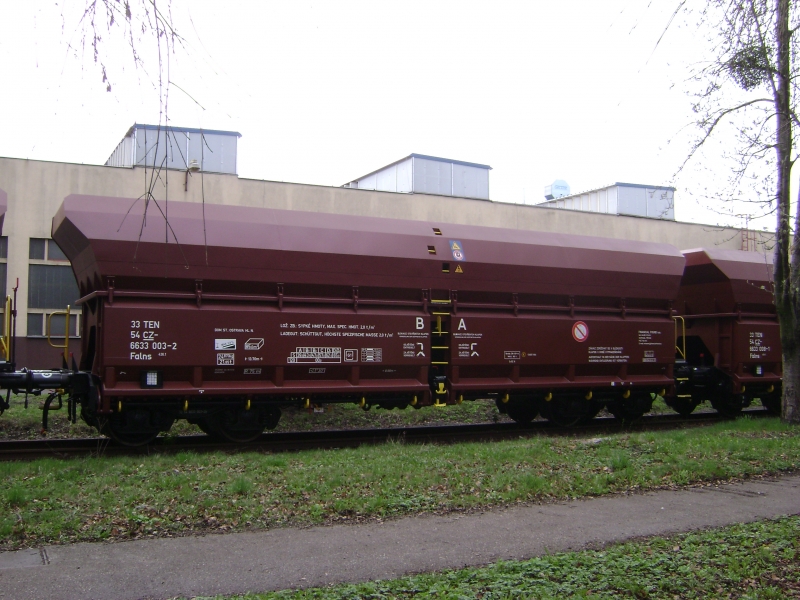

Falns, type 9-436.1

Falns, type 9-436.1
Description:
Four axle open hopper wagon with hand and air control of side flaps for transport of coal, coke and gravel, approved to international operation according to TSI.
Technical data:
Tare weight25 t ± 3%
Railway gauge1 435 mm
Payload65 t
Total weight90 t
Axle load22,5 t
Load volume85 m3
Length over buffers13 700 mm
Bogie typeY25 Ls(s)
Vmax - empty wagon120 km/h
Vmax - loaded wagon with axle load of 22,5t100 km/h
Vmax - loaded wagon with axle load of 20t120 km/h
Pneumatic brakeDAKO-GP-A K

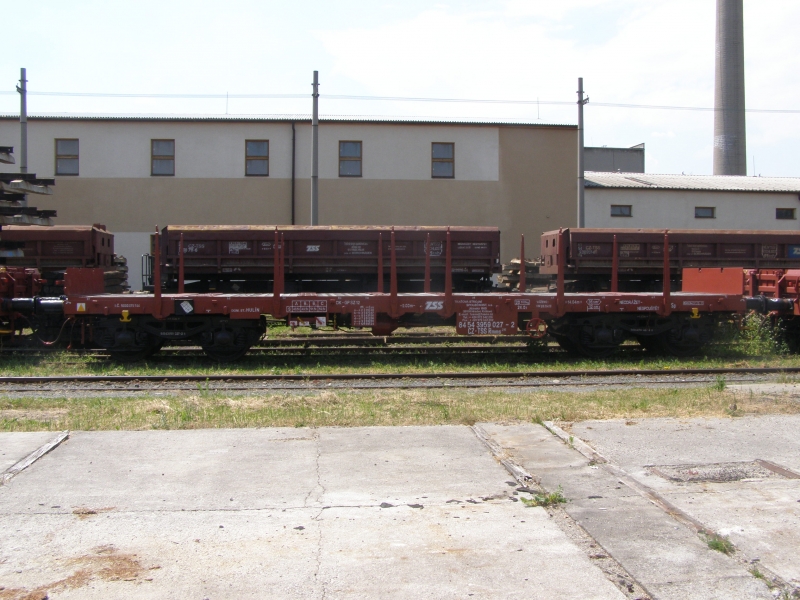

Rmms, type 9-216.0

Rmms, type 9-216.0
Description:
Four axle flat wagon for transport of piece goods, long goods, road vehicles.
Technical data:
Railway gauge1 435 mm
Maximum speed100/120 km/h
Tare weight20,4 t
Axle load20 t
Inside width2 900 mm
Inside langht12 644 mm
Payload59,6 t
Total weight80 t
Loading area36.5 m2
Length over buffers14 040 mm
Wheel diameter920 mm
BogiesY 25 Rs
Pneumatic brakeDAKO DK-GP

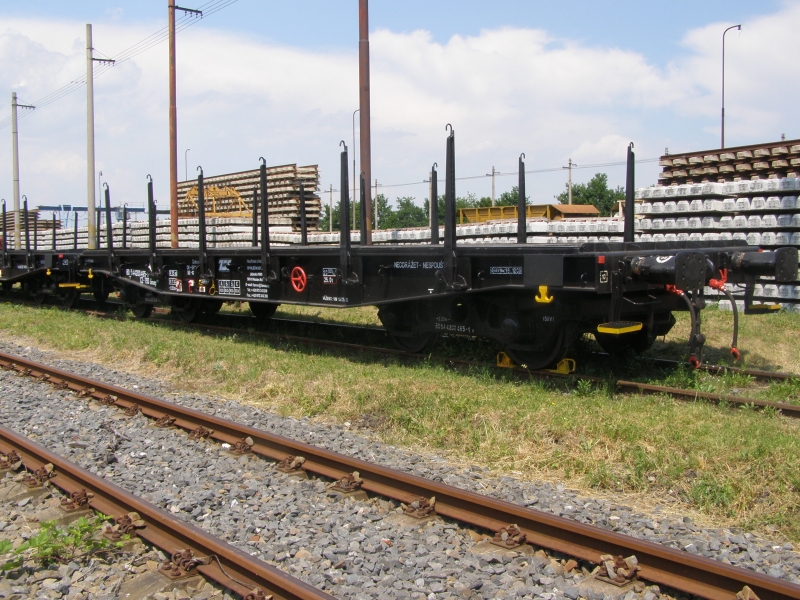

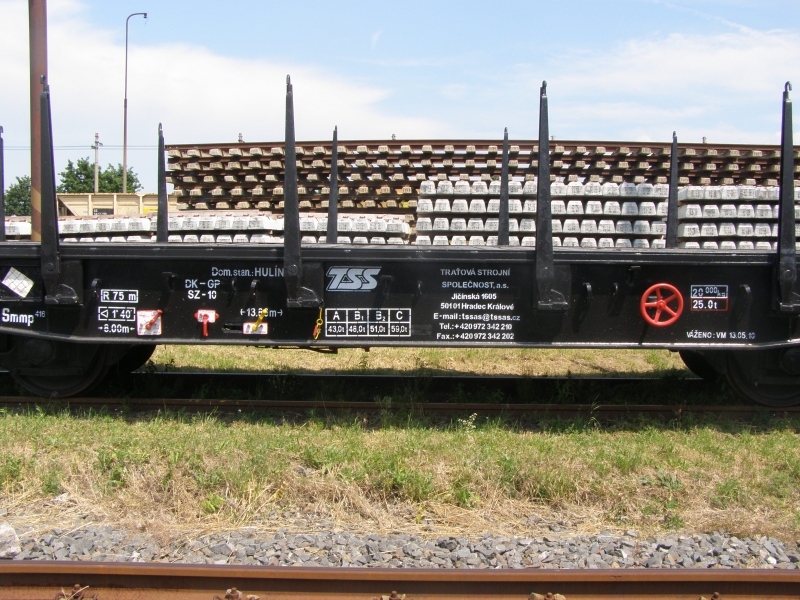

Smmps, type 5-438.7

Smmps, type 5-438.7
Description:
Four axle flat wagon for transport of long goods, bulky piece goods, wheel and caterpillar vehicles.
Technical data:
Railway gauge1 435 mm
Maximum speed80 km/h
Tare weight22,5 t
Inside width3 110 mm
Inside langht14 000 mm
Payload56 t
Loading capacity17,3 m3
Loading area43,5 m2
Length over buffers15 240 mm
Wheel diameter940 mm
Bogies26-2.8 option 26-2.7
Pneumatic brakeDAKO CV1-D14nullnull

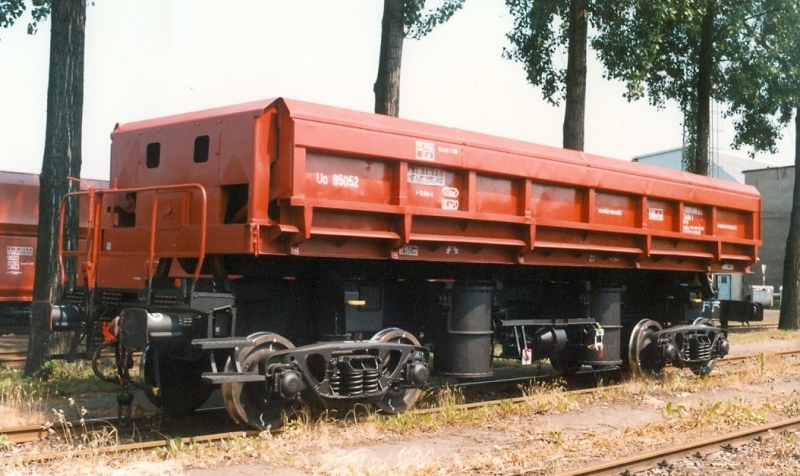

Ua, type 418V

Ua, type 418V
Description:
Four-axle dumping wagon for transport of bulk materials such as gravel, broken stone, sand, soil etc. Unloading, to any side of track, is effected by tilting the wagon body through an angle of 45° using pneumatic cylinders. Maximum wagon height in tilting position is 4 250 mm over rail level.
Technical data:
Railway gauge1 435 mm
Maximum speed65 km/h
Tare weight27 t
Axle load20 t
Wagon width3 080 mm
Wagon height3 205 mm
Payload53 t
Total weight80 t
Loading capacity31 m3
Loading area26 m2
Length over buffers12 540 mm
Wheel diameter960 mm
Bogies2xTa
Pneumatic brakeDAKO DK-GP

Faccpps, type 9-428.0

Faccpps, type 9-428.0
Description:
Four-axle hopper wagon for transport of bulk commodities (especially broken stone).The wagon is equipped with mechanism for controlled discharge of load and for scuff during slow drive. The hopper placed on the spin of wagon frame provides controlled discharge of load by flaps:
- external flaps provide proportioning behind a head of rail into the outer space of superstructure
- internal flaps provide proportioning into the space between rail.
Flaps are pneumatically controlled by cylinders and leverage. Flaps are secured in the transport position by arrestment. A frame of dispenser is situated under a hopper, by lifting and lowering of which spreading of load is regulated during a slow drive. The frame is pneumatically controlled by cylinders. In transport position the frame is secured by protective suspensions. The wagon unloading is controlled from wagon platform using pneumatic valves.
Technical data:
Railway gauge1 435 mm
Maximum speed100 km/h
Work speed3 up 5 km/h
Tare weight24 t
Payload48 t
Total weight72 t
Axle load18 t
Wagon width3 114 mm
Wagon height3 685 mm
Loading capacity32,5 m3
Length over buffers12 190 mm
BogiesY25Rs, Y25Cs
Pneumatic brakeDAKO DK G-P

Faccs, type 9-407.0

Faccs, type 9-407.0
Description:
Wagon is intended for transport of bulk and loose materials which don´t require covered loading room during transport.
Technical data:
Railway gauge1 435 mm
Maximum speed100 km/h
Tare weight24 t
Payload56 t
Total weight80 t
Axle load20 t
Loading capacity38 m3
Length over buffers12 740 mm
Wagon width3 100 mm
Wagon height000 mm
Bogies26-2.8
Pneumatic brakeDAKO CV1-D14

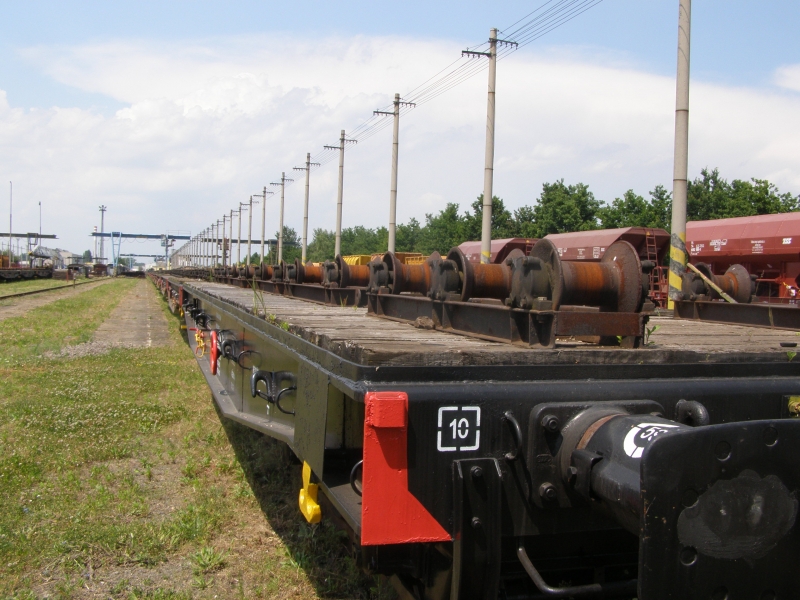

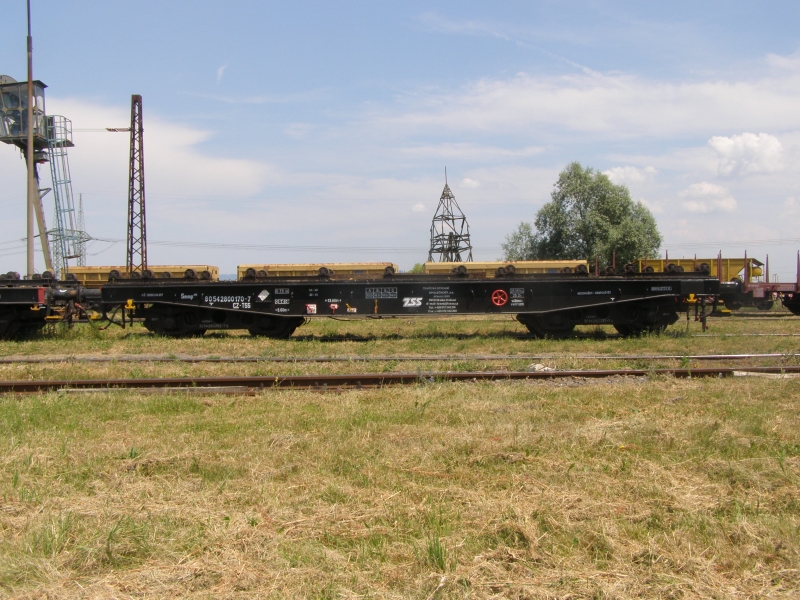

Smmp, type 416, 9-208.5

Smmp, type 416, 9-208.5
Description:
Four axle flat wagon for transport of long goods, bulky piece goods, wheel and caterpillar vehicles.
Technical data:
Railway gauge1 435 mm
Maximum speed100 km/h
Tare weight22,5 t
Inside width2 900 mm
Inside langht12 620 mm
Loading area36,6 m2
Length over buffers13 860 mm
Wheel diameter920 mm
Bogies26-2.8.
Pneumatic brakeDAKO CV1-D14

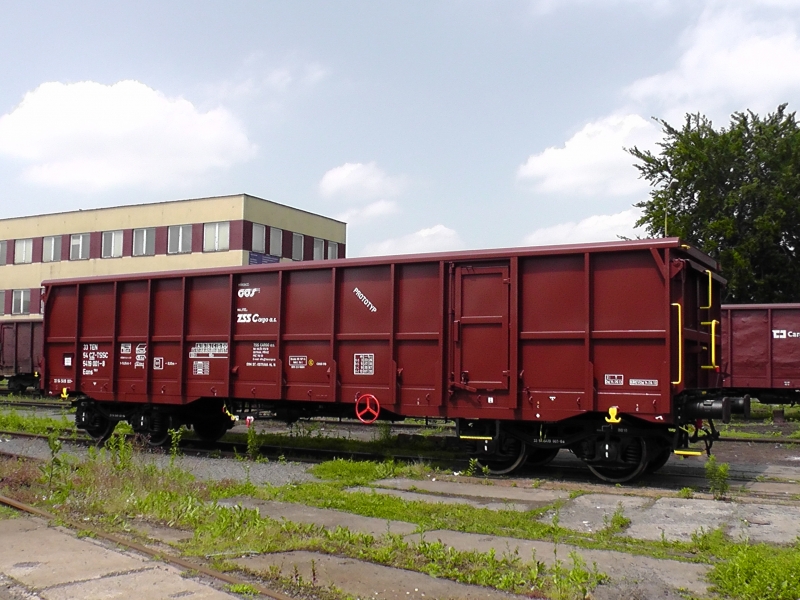

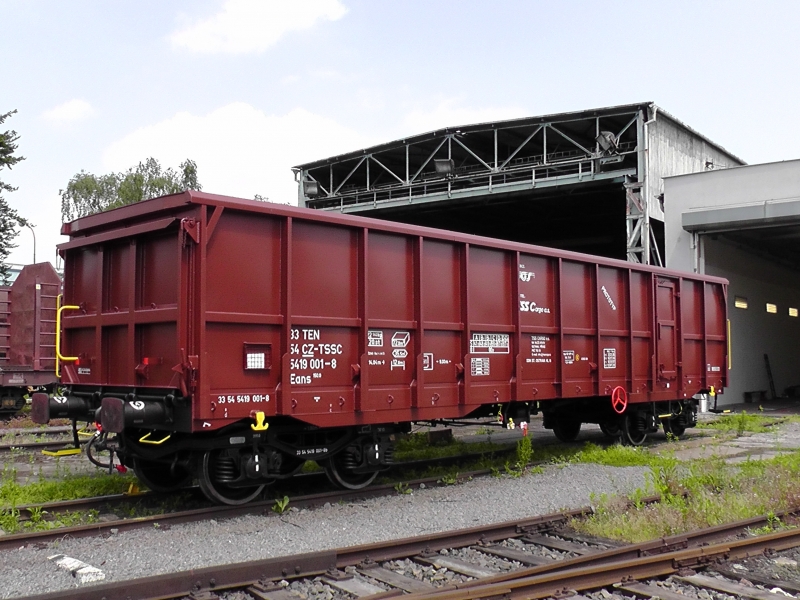

Eans, type 9-105.0

Eans, type 9-105.0
Description:
Four axle open high-sided wagon for transport of coal, coke, ore, loose materials, piece goode, and screp-metal which do not require covered room during transport.
Technical data:
Railway gauge1 435 mm
Maximum speed120 km/h
Tare weight22,5 t
Payload67,5 t
Total weight90 t
Axle load22,5 t
Load volume72 m3
Load area35,5 m2
Load length12,80 m
Load width2,76 m
Bogie typeY25 Ls(s)
BrakeKNORR KE-GP-A

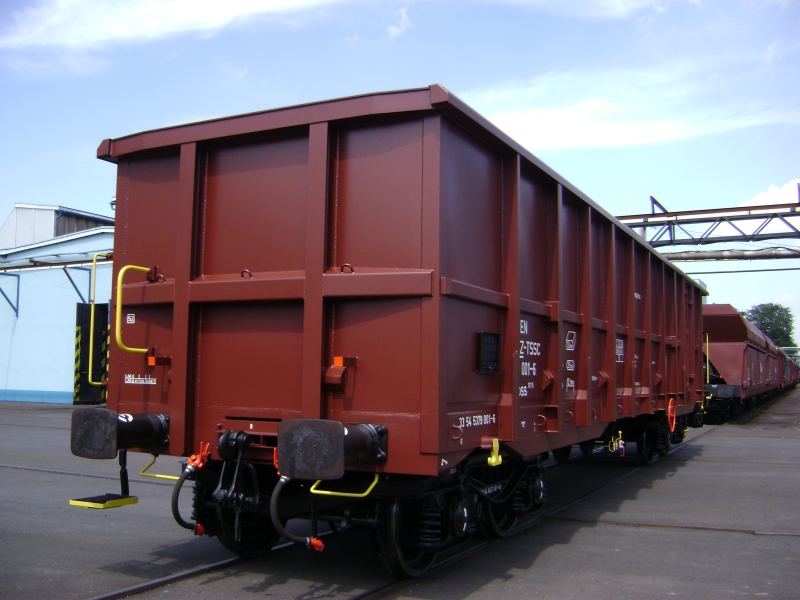

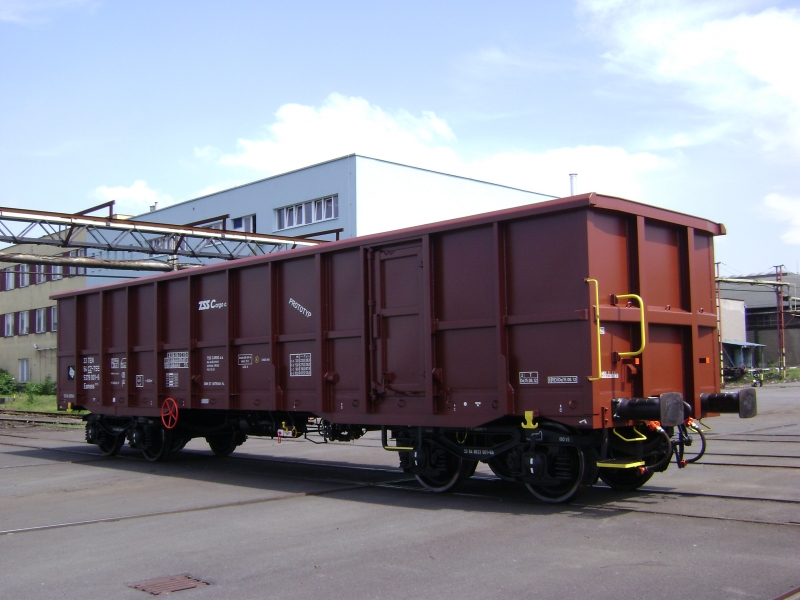

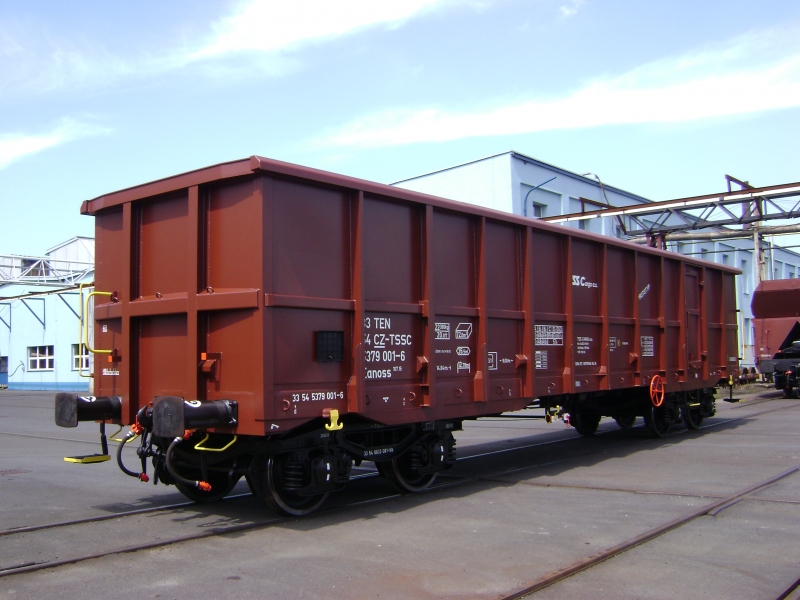

Eanos, type 9-149.0

Eanos, type 9-149.0
Description:
Four axle open high-sided wagon for transport of coal, coke, ore, loose materials, piece goode, and scrap-metal which do not require covered room during transport. Wagon is approved to international operation according to TSI.
Technical data:
Railway gauge1 435 mm
Maximum speed120 km/h
Tare weight22,5 t
Payload67,5 t
Total weight90 t
Axle load22,5 t
Load volume72 m3
Load area35,5 m2
Load length12,79 m
Load width2,76 m
BrakeDAKO-GP-A-K

Sggrss 80´

Sggrss 80´
Description:
Six axle articulated wagon for transport of ISO containers of the length of 20´, 30´, 40 ´ and swap bodies of the groups 1,2, 3, 3a and 4. The wagon is approved to international operation according to TSI.
Technical data:
Railway gauge1 435 mm
Maximum speed120 km/h
Tare weight27,5 t
Payload107,5 t
Total weight135 t
Axle load22,5 t
Bogie typeY25Ls(s)
BrakeKNORR-KE-GP-A

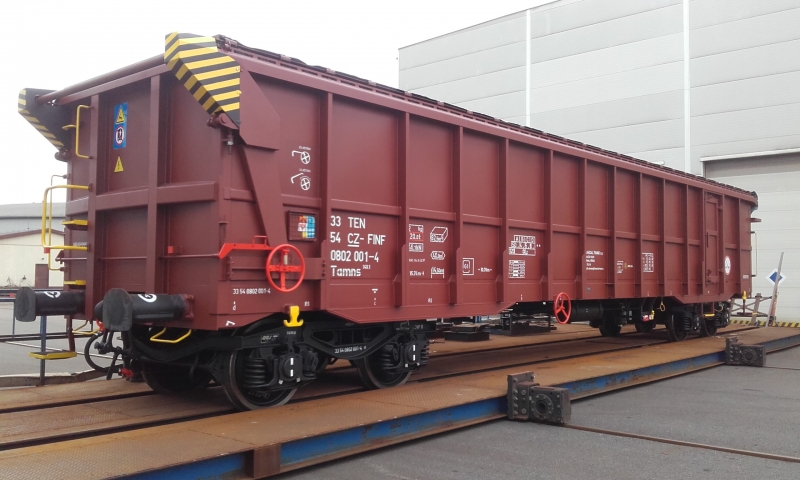

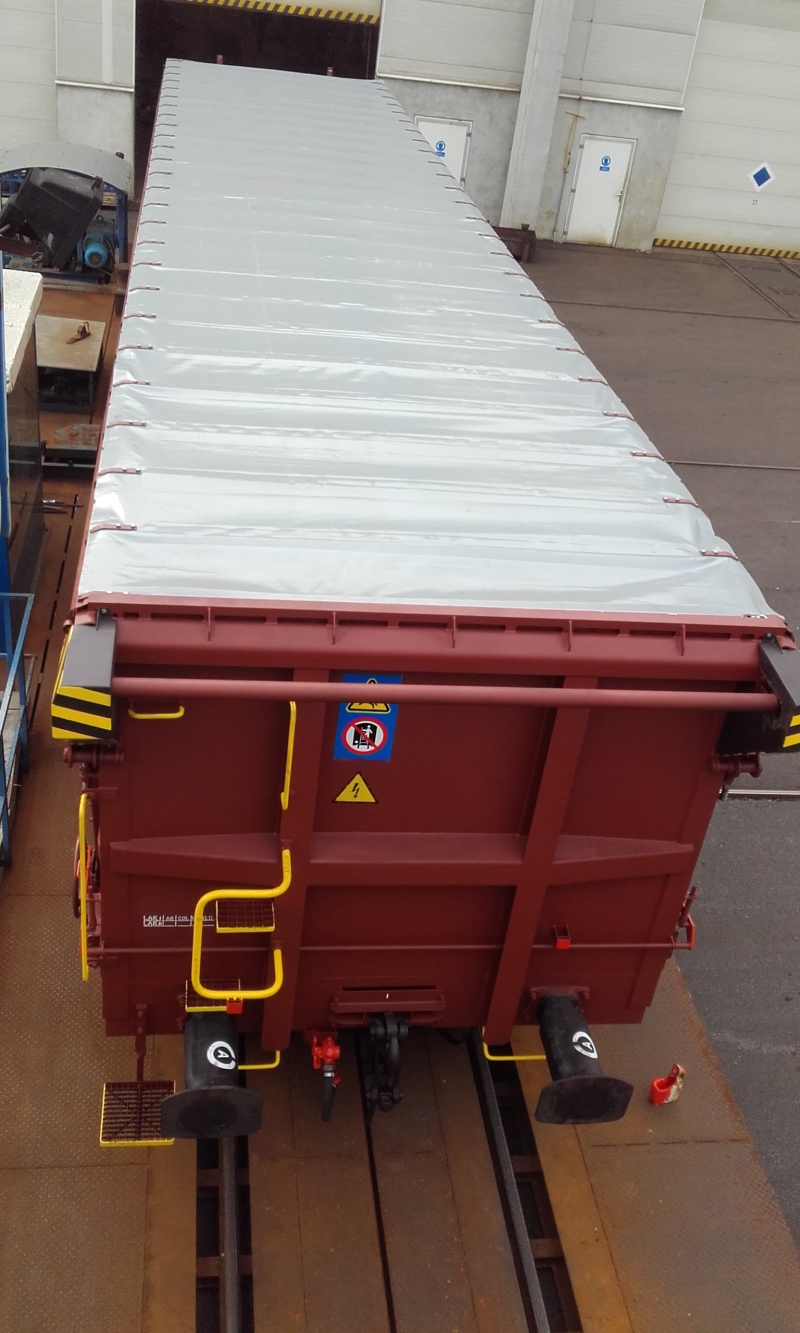

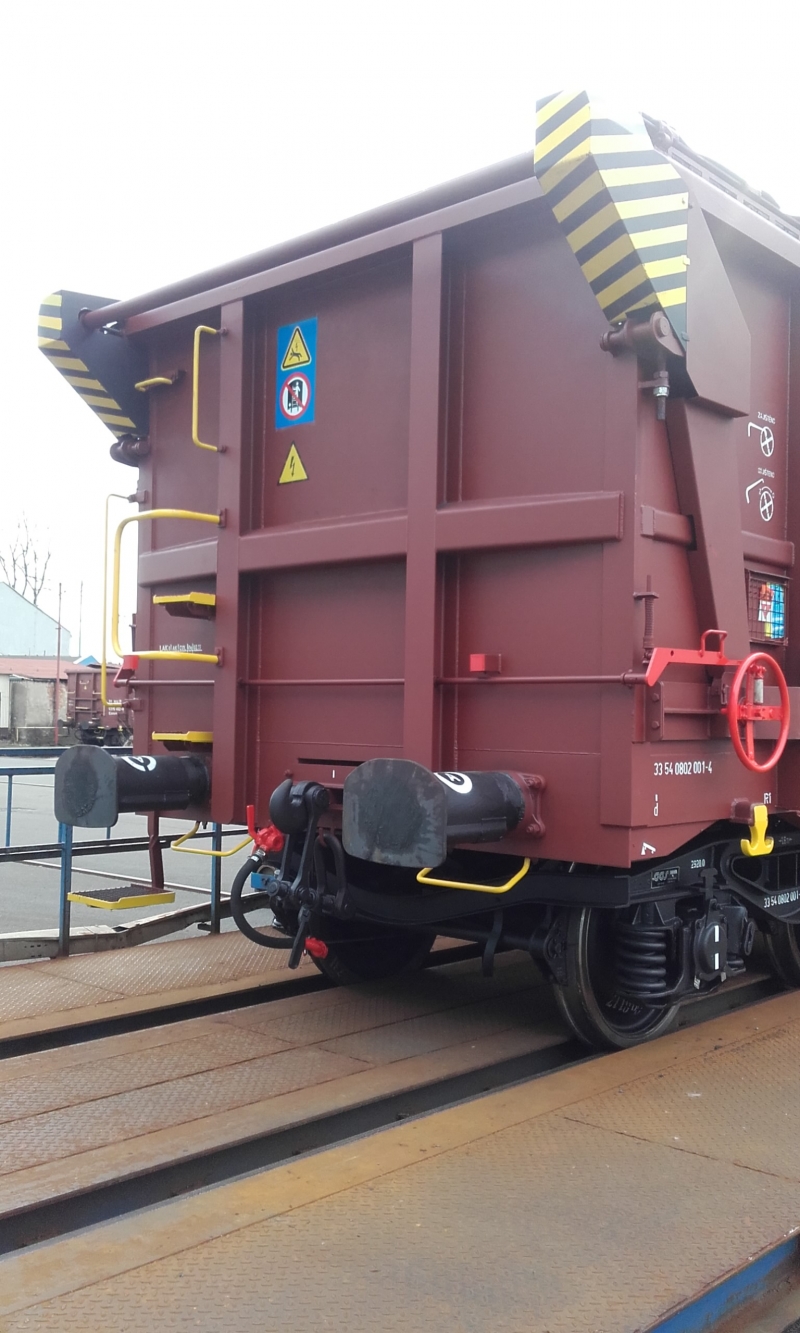

Tamns, type 9-149.10

Tamns, type 9-149.10
Description:
Four axle high-sided wagon with opening roof. The wagon is designed for operation in \\\"S\\\" mode. The wagon is designed for transportation of loose and bulk materials requiring weather protection. Advantages: The wagon can be operated as an open wagon.
Technical data:
Railway gauge1 435 mm
Vmax-empty wagon120 km/h
Vmax-loaded wagon100 km/h
Load volume82,5 m3
Payload65,4 t
Total weight90 t
Axle load22,5 t
Bogie typeY 25 Ls(s)
BrakeKNORR KE-GP-A

Fals 164

Description:
Four axle open hopper wagon for transport of coal and coke with air control of side flaps from the wagon platform
Technical data:
Railway gauge1 435 mm
Max. wagon speed120 km/h
Tare weight26,5 t
Axle load20 t
Total weight80 t
Loading volume75 m3
BogiesY 25 Cs
BrakeKE-GP

Ealos-t 058

Description:
Four axle open wagon preferentially used for transport of round timber with the length of 2 m to 4 m.
Technical data:
Railway gauge .1 435 mm
Max. wagon speed120 km/h
Loading mass54,5 t
Loading length12 800 mm
Loading width2 760 mm
Loading height2 095 mm
Loading volume72 m3
Loading area35,3 m2
BrakeKE-GP

Eanos, RVG 01.00

Description:
Four axle open high-sided wagon for transport of coal, coke, ore, loose materials and piece goods.
Technical data:
Railway gauge1 435 mm
Max. wagon speed120 km/h
Loading mass65,6 t
Total weight90 t
Axle load22,5 t
Wagon length over buffers15 740 mm
Wagon height3 300 mm
Loading volume82,5 m3
Loading area39,4 m2
BogiesY 25 Ls(s)d1
BrakeKE-GP


Rmms 662

Description:
Four axle flat wagon for transport of piece goods, long goods, road vehicles.
Technical data:
Railway gauge1 435 mm
Max. wagon speed120 km/h
Tare weight19 t
Loading width2 720 mm
Loading length11 140 mm
Max. loading mass60,5 t
Loading area35 m2
Wagon length over buffers12 520 mm
Air brakeKE-GP
